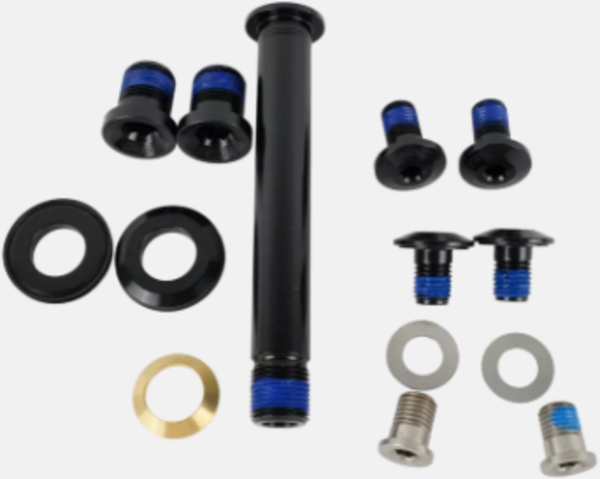

Specialized MY18-20 EPIC, CARBON FRAME, SUSPENSION PIVOT BOLT KIT (USE W/ S194500001)

Suspension pivot bolt kit for 2018 - 2020 Epic Carbon bikes with black anodized bolts
Main Pivot (Chainstay) Pivot Axle: 12mm W x 90mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 1 pcs.
Main Pivot (Chainstay) Pivot Axle Washer: 12.1mm ID x 18mm OD x 3mm W - Brass - 1 pcs.
Shock Link to Seat Tube Pivot Bolt: 8mm W x 8mm L - Alloy - Torque: 80 in-lbf (9 Nm) - 2 pcs.
Shock Link and Extension to Seatstay Pivot Bolt (Outer): 12mm W x 14.3mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 2 pcs.
Shock Link and Extension to Seatstay Pivot Bolt (Inner): Reverse Thread - 8mm W x 11mm L - Steel - Torque: 80 in-lbf (9 Nm) - 2 pcs.
Upper Shock Eye Bolt: 8mm W x 11.5mm L - Alloy - Torque: 60 in-lbf (6.8 Nm) - 2 pcs.
Upper Shock Eye Washer: 8.25mm ID x 15mm OD x 0.3mm W - Steel - 2 pcs.
Shock Link to Seat Tube Spacers Sold Seperately: SKU - S194500001
FITS:
2020 EPIC COMP CARBON 29
2020 EPIC COMP CARBON EVO 29
2020 EPIC EXPERT CARBON 29
2020 EPIC EXPERT CARBON EVO 29
2020 EPIC PRO CARBON 29
2020 EPIC SW CARBON 29 FRM
2020 EPIC SW CARBON EVO 29
2020 EPIC SW CARBON SHIMANO 29
2020 EPIC SW CARBON SRAM AXS 29
2020 EPIC SW TEAM FRM RAW NO CLEARCOAT 29
2019 EPIC MEN COMP CARBON 29
2019 EPIC MEN EXPERT CARBON 29
2019 EPIC MEN EXPERT CARBON 29 - WF
2019 EPIC MEN EXPERT CARBON EVO 29
2019 EPIC MEN PRO CARBON 29
2019 EPIC MEN SW CARBON EVO
2019 EPIC MEN SW CARBON FRM 29
2019 EPIC MEN SW CARBON LTD FRM 29
2019 EPIC MEN SW CARBON SRAM 29
2019 EPIC MEN SW CARBON SRAM 29 - WF
2019 EPIC MEN SW FRMSET LTD
2019 EPIC MEN SW TEAM FRM RAW NO CLEARCOAT 29
2019 EPIC WMN COMP CARBON 29
2019 EPIC WMN SW CARBON 29
2018 EPIC MEN COMP CARBON 29
2018 EPIC MEN COMP CARBON 29 - WF
2018 EPIC MEN EXPERT CARBON 29
2018 EPIC MEN EXPERT CARBON 29 - WF
2018 EPIC MEN PRO CARBON 29
2018 EPIC MEN SW CARBON DI2 29
2018 EPIC MEN SW CARBON FRM 29
2018 EPIC MEN SW CARBON LTD FRM 29
2018 EPIC MEN SW CARBON SRAM 29
2018 EPIC MEN SW CARBON SRAM 29 - WF
2018 EPIC MEN SW TEAM FRM RAW NO CLEARCOAT 29
2018 EPIC MEN SW ULTRALIGHT FRM
2018 EPIC WMN COMP CARBON 29
2018 EPIC WMN SW CARBON 29
2018 EPIC WMN SW TEAM FRM RAW NO CLEARCOAT 29
